Product Detail

Model No.: OmniXK8818

Production Capacity: 5000 pcs

Delivery Date: Depend on your order and pa...

Processor: SAMNSUMG2440 processor, 400...

Storage: ROM 128M Byte, RAM64M Byte ...

Touch: Touch hand-input function

Frequency: LF 125Khz, HF 13.56Mhz & UH...

Industry Standard: IP54

Means of Transport: Air

Packing: carton

Brand Name: RDM

OS: Microsoft Windows CE 6.0

Display: 2.8 inch TFT

Communication: USB, Bluetooth, GPRS, WiFi

Battery: 2100mAh/3.7 V lithiumion ba...

Dimension: 150mm*68mm*32mm

1. OS Microsoft Windows CE 6.0
2. GPRS, WIFI, Bluetooth
3. LF/HF/UHF frequency for options
4. IP54 standard
5. with RFID, Barcode reading

Introduction

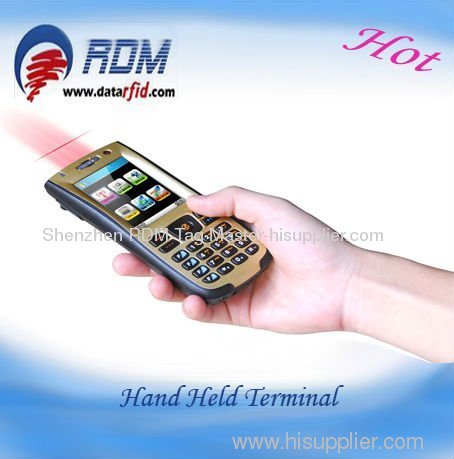

OmniXK8818 serial portable data-collect terminal is a high-tech product, which integrate with RFID, Barcode reading, data collecting & processing & communicating and other functions in one device.

Physical Parameters
Size: 150 (L) * 68 (W) * 32 (H) mm (configured with standard battery)

Weight (with standard battery installed): 380g

Screen: OLED 2.8-inch QVGA display (262,144 colors)
240w×320 (QVGA size)

Touch panel: Glass analog resistive touch

Backlight: OLED self-luminous

Main battery: rechargeable polymer battery(3.7V,2100mAH)

Stand-by time: 250 hours

Time of scanning each single charge: 5000 times

Expansion slots:
UART slot (with safety guard) that users can install
Supports SAM, SIM and TF cards

Alert: vibrators (two), LED and voice

Camera: 30W pixels camera

Input method: stylus is standard configuration;

multiple input methods available

Audio: speaker, receiver, software supporting full duplex recording and
playing (stereo)

Loudspeaker: 0.5w

Indicator: wireless transmission/reception, scanning,

Linear 1D scanner (optional)

Optical resolution: minimum bar width of 0.005 inch

2D imaging engine

Rotated viewing angle:+/-30° drift off the normal angle

Inclined viewing angle: +/-65° drift off the normal angle

Offset viewing angle tolerance: +/-60° drift off the normal angle

Ambient light: Sunlight: 8,000ft.candles(86,112Lux)

Artificial light: 450ft.candles(4,844Lux)

Scanning frequency: 50 (+/-6) times per second (2-way)

Scanning angle: 46.5°(standard)

Laser power: 1.0mA (standard)

Recognizing precision: laser larger than 6 mil

Optical resolution: 640(horizontal)×480(vertical)
pixels (grayscale)

Rotated viewing angle: 360°

Inclined viewing angle: +/-60° drift off the vertical angle

Offset viewing angle tolerance: +/-50° drift off the normal angle

Ambient light: constant dark 9,000ft.candles(96,900Lux)

Focal length before the engine:
short distance: 5 inches, long distance: 9 inches

Focusing components (VLD): 650nm+/-5nm

Lighting components (LED): 635nm+/-20nm

Viewing area: 32.2° (horizontal) / 24.5° (vertical)
